Monitoring - Enhance KPI
The Monitoring - Enhance KPI page provides visualizations for monitoring network device performance, including stacked switches and SNMP nodes. It also includes quick filters to refine results without complex queries.
Available filters
- Customer Name
- GSMA Code
- Data Source
- Switch Stack Name
Each filter supports:
- Include: Show only selected results.
- Exclude: Remove selected results.
Visualization display options
- Settings: Configure time range and options.
- Inspect: Download reports.
- Maximize: Expand or minimize the visualization.
Available visualizations
Category | Visualization / Metric |
|---|---|
Switch Stack Node Status | Total Stack Switches |
| Master, Member, Standby, and Down Switches |
| Switch Stack Summary Table |
| Switch Roles Graph by Time |
SNMP Node Status | Total Nodes |
| Nodes Down |
| SNMP Nodes Summary Table |
| SNMP Unresponsive Warning Status Nodes |
| Unresponsive Nodes Table |
Module Failure/Error Summary | Failed Hardware Summary Table |
| Top 10 Hardware Devices Pie Chart |
| Hardware Category Status Bar Chart |
| Hardware Category Status Pie Chart |
Failover Status for F5 | Total F5 Nodes |
| F5 Status Pie Chart |
| F5 VIP Status |
HSRP/VRRP Summary | HSRP/VRRP Status |
| Total CustomPoller Node ID |
| HSRP/VRRP Status Down |
| HSRP/VRRP Visualization |
Volume Utilization | Total Nodes |
| Nodes at 98% Volume Capacity |
Volume Utilization | Trend (Scatter Chart): Node capacity usage every 3 hours: • ≥ 95% • < 95% and > 80% • < 80% |
| Summary Table: Node % Usage and % Capacity with filters (e.g., Device Name) |
| Line Chart: Trend of % Available and % Volume Used over 7-day intervals |
Connection Count | F5 Connections ≥ 50: F5 nodes with 50 or more connections |
| F5 Connections < 50: F5 nodes with fewer than 50 connections |
| F5 Connection Count: Total F5 node connections |
| F5 Connection Status: F5 nodes by status |
BIG-IP Failover Status | Standby: BIG-IP nodes in standby status |
| Unknown: BIG-IP nodes with unknown status |
| Sync Needs Manual: BIG-IP nodes requiring manual synchronization |
| Sync Failed: BIG-IP nodes with failed synchronization |
| Failover Status: BIG-IP nodes in active status |
| Sync Details: Table of BIG-IP failover synchronization details |
| Status: All BIG-IP nodes by status |

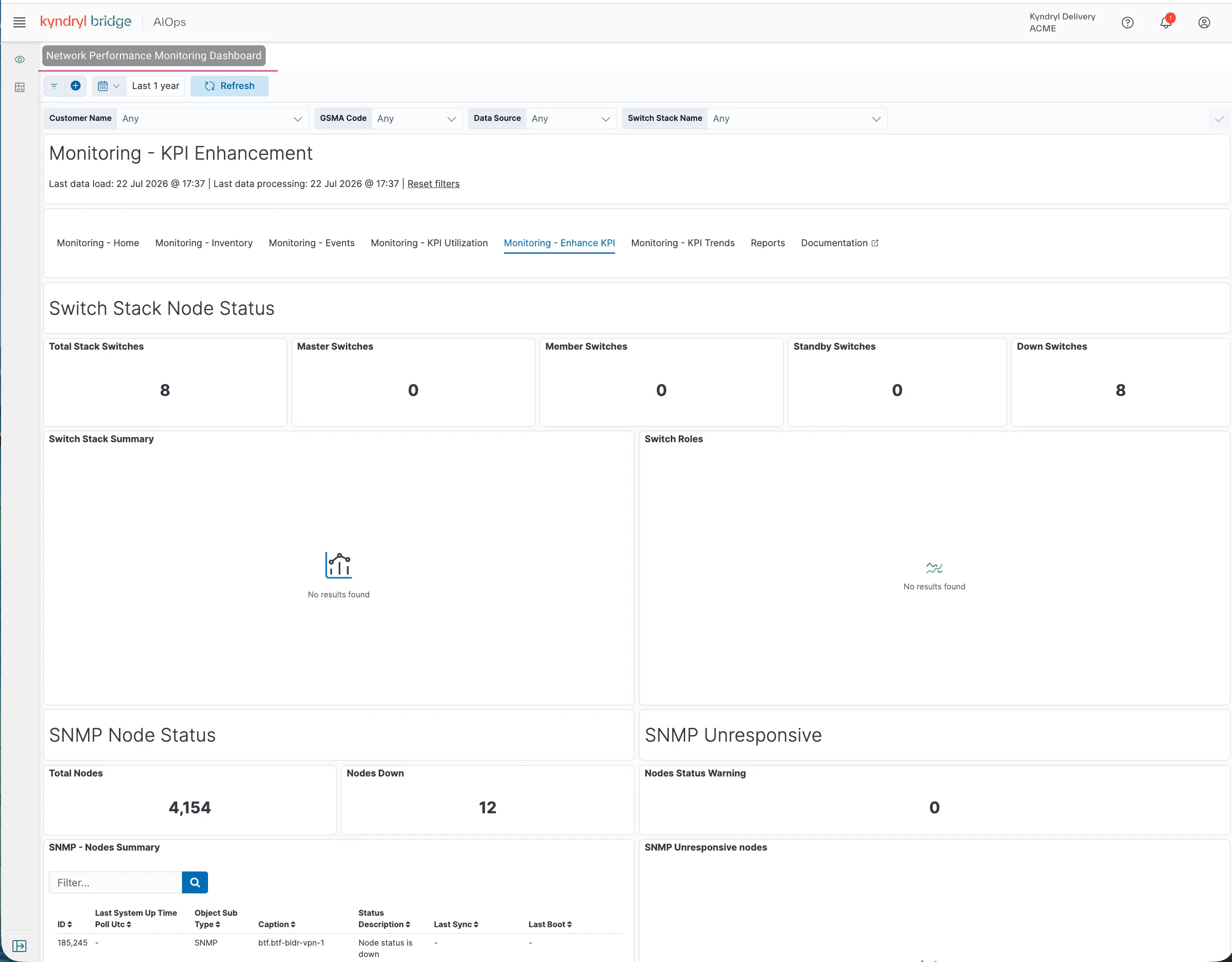

Refer to the following image for more details:
